Szczegóły produktu
Miejsce pochodzenia: Chiny
Nazwa handlowa: COWELL
Orzecznictwo: CE
Numer modelu: HYF-03, HYF-04, HYF-05
Warunki płatności i wysyłki
Minimalne zamówienie: 1
Szczegóły pakowania: Twardy karton
Czas dostawy: 7-15 dni roboczych
Zasady płatności: T/T
Produkt: |
Adapter API |
Rozmiar: |
4" |
Tworzywo: |
Aluminium |
Aplikacja: |
Olej napędowy, benzyna, nafta |
Produkt: |
Adapter API |
Rozmiar: |
4" |
Tworzywo: |
Aluminium |
Aplikacja: |
Olej napędowy, benzyna, nafta |
Description

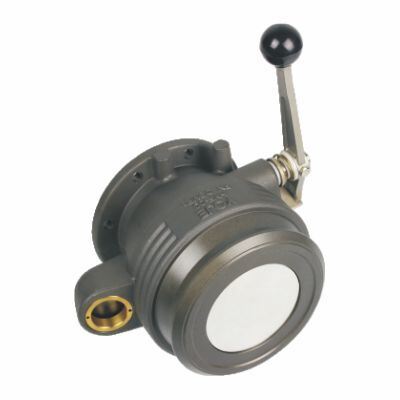

HYF series API Adaptor is installed on one side of the tanker bottom for quick unloading. When loading the fuel, it connects with API adaptor coupler tightly,
When unloading the fuel, two-stage fixed handle control the flow rate and side pull effectively.
Characteristics
Aluminum alloy die-cast sturcture, anodized treatment
Hydrodynamic design minimizes the pressure drop for high flow rate.
Light weight, die cast aluminum construction for increased payloads with strength.
Two-stage fixed aluminum handle positively indicates valve position.
Stainless steel operation shaft, cam & poppet stem for durability.
The sight glass can be check easily by operator
Material
Body: Aluminum alloy
Shaft: Stainless Steel
Spring: Stainless Steel
Bushing: Copper
Seal: NBR
|
Technical Specification |
|||
|
Model |
HYF-03 |
HYF-04 |
HYF-05 |
|
Size |
4" |
||
|
Working pressure |
0.6 Mpa | ||
|
Max. flow rate |
2500L/Min |
||
|
Air pressure required |
0.4-0.8 Mpa |
||
|
Temperature range |
-20~70℃ |
||
|
Connection mode |
Flange |
||
|
Operating mode |
Mechanical Fork |
No Handle |
Mechanical Fork |
|
Medium |
Diesel, Gasoline, Kersene |
||
